金矿CIL与CIP和堆浸的技术比较

Selecting the right gold processing method is one of the most critical decisions in a mining project. The choice directly affects capital investment, operating costs, recovery rate, environmental compliance和 long-term profitability.

Among modern gold extraction technologies, CIL (Carbon-in-Leach), CIP (Carbon-in-Pulp)和 Heap Leaching are the three most commonly applied methods worldwide. Although they are all based on the fundamental chemical principle of "cyanide dissolution of gold-carbon adsorption", they differ significantly in process configuration, applicable ore types, investment costs, recovery rates和 operational complexity. Each process has specific technical requirements, economic implications和 suitable ore conditions.

This article provides a detailed comparison of CIL, CIP和 Heap Leaching to help investors, engineers和 mine owners determine the most appropriate solution for their gold project.

1. Overview of the Three Gold Processing Methods

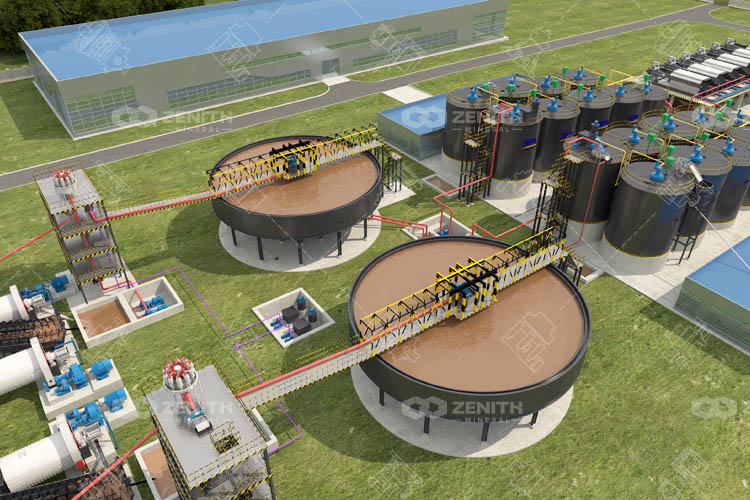

1.1 CIL (Carbon-in-Leach)

Gold CIL integrates cyanide leaching and carbon adsorption into the same series of tanks. Gold is dissolved from ore and simultaneously adsorbed onto activated carbon within the same circuit.

This integrated approach reduces processing time and simplifies flowsheet design. CIL is widely used for medium to large-scale hard rock gold processing plants.

1.2 CIP (Carbon-in-Pulp)

In the CIP process, gold leaching occurs first in leach tanks. After leaching is completed, activated carbon is added in a separate adsorption stage to recover dissolved gold.

Because leaching and adsorption are separated, CIP generally requires more tanks and slightly longer retention time compared with CIL.

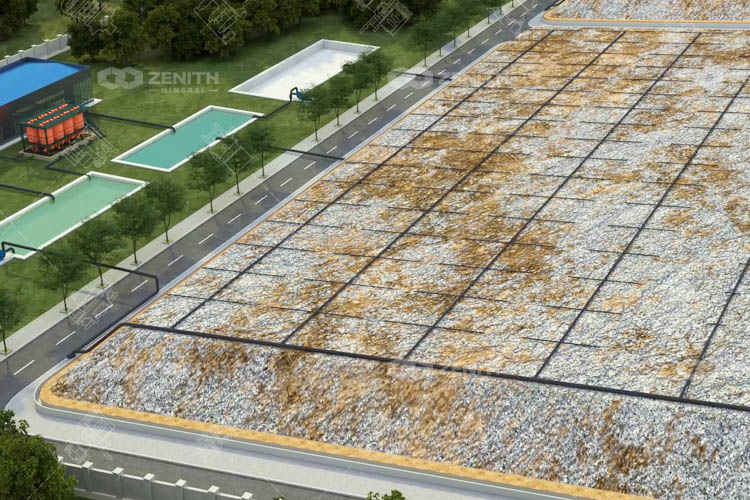

1.3 Heap Leaching

Heap leaching is a low-cost gold extraction method suitable for low-grade ores. Crushed ore is stacked on impermeable pads和 cyanide solution is sprayed or dripped over the heap.

Gold dissolves gradually and is collected from the bottom of the heap for further recovery through carbon adsorption or zinc precipitation.

Heap leaching requires significantly lower capital investment but typically achieves lower recovery rates and slower production cycles.

2. Process Flow Comparison

2.1 CIL Process Flow

• Crushing and grinding
• 变稠
• Simultaneous leaching and carbon adsorption
• Carbon elution and electrowinning
• Smelting

The key feature is that leaching and adsorption occur in the same tanks, improving kinetics and reducing gold losses.

2.2 CIP Process Flow

• Crushing and grinding
• 变稠
• Leaching tanks
• Separate carbon adsorption tanks
• Elution and electrowinning

Because adsorption happens after leaching, CIP systems usually require more tank volume.

2.3 Heap Leaching Flow

• Crushing (often no fine grinding)
• Agglomeration (if necessary)
• Stacking on heap pad
• Cyanide irrigation
• Gold solution collection
• Carbon adsorption or Merrill-Crowe

Heap leaching eliminates the grinding and tank leaching systems, dramatically reducing capital cost.

3. Suitable Ore Conditions

3.1 CIL Suitable Ores

• Hard rock gold ores
• Fine-grained disseminated gold
• Oxide and low-sulfide ores
• Gold particle size < 0.1 mm
• Medium to high grade ores

CIL performs well when gold is easily leachable and distributed within fine particles.

3.2 CIP Suitable Ores

• Similar to CIL in ore characteristics
• Suitable when leaching time must be carefully controlled
• Situations requiring flexible adsorption control

CIP may be selected when adsorption performance needs tighter control or when existing infrastructure supports separate circuits.

3.3 Heap Leaching Suitable Ores

• Low-grade gold ores (typically 0.5–2 g/t)
• Oxide ores with good permeability
• Large tonnage deposits
• Simple mineralogy

Heap leaching is not suitable for refractory ores or ores requiring fine grinding.

4. Gold Recovery Rate Comparison

• CIL: 90–95%
• CIP: 88–94%
• Heap Leaching: 60–85%

CIL generally achieves slightly higher recovery due to simultaneous leaching and adsorption. Heap leaching recovery depends heavily on ore permeability and leaching time.

5. Capital Investment Comparison

Heap leaching requires the lowest capital investment because it eliminates grinding and large tank systems.

CIP typically requires higher capital cost than CIL due to separate adsorption tanks.

CIL offers a balanced investment level while maintaining high recovery and stable production.

6. Operating Cost Comparison

CIL

• Moderate energy consumption
• Requires grinding
• Stable reagent consumption
• Lower gold loss risk

CIP

• Similar to CIL
• Slightly higher tank maintenance

Heap Leaching

• Lower energy consumption
• Lower labor requirement
• Higher cyanide consumption per ton
• Longer production cycle

Cost per ton must be calculated based on ore grade, plant scale和 local energy prices.

7. Production Scale Suitability

• CIL: 300–10,000 TPD
• CIP: 300–8,000 TPD
• Heap Leaching: 5,000–100,000+ TPD

Heap leaching is ideal for very large, low-grade deposits. CIL and CIP are preferred for medium to high-grade hard rock operations.

8. Environmental Considerations

CIL and CIP plants require proper tailings management, detoxification systems和 water recycling facilities.

Heap leaching requires carefully engineered heap pads with liners and solution collection systems to prevent cyanide leakage.

Environmental regulations in many countries increasingly require dry stacking or advanced tailings management systems.

9. How to Choose the Right Gold Processing Method?

The decision-making process generally follows a "Value vs. Cost" logic:

• Mineralogy First: If your ore contains high levels of naturally occurring carbon (preg-robbing), CIL is almost always the mandatory choice to prevent gold loss.
• Grade vs. Volume: If you have millions of tons of low-grade ore, the cost of electricity to grind that rock into a fine powder for CIL/CIP will likely exceed the value of the gold. In this case, Heap Leaching is the only viable path.
• Capital Availability: If you are a junior miner with limited startup capital, a Heap Leach setup allows you to generate cash flow quickly, which can later be used to fund a high-efficiency CIL plant for higher-grade zones.

10. Engineering the Right Gold Processing Solution for Your Project

CIL, CIP和 Heap Leaching are all proven gold extraction technologies, but each serves different project conditions and economic objectives.

• CIL offers high recovery and balanced investment.
• CIP provides operational flexibility.
• Heap leaching delivers low capital cost for large low-grade deposits.

Selecting the correct method requires a comprehensive evaluation of ore characteristics, production targets和 financial strategy. A customized engineering design based on metallurgical testing ensures optimal recovery and long-term profitability.

If you are planning a gold processing project and need professional guidance in selecting the most suitable method, our engineering team can provide customized process design, equipment configuration和 cost analysis tailored to your specific ore conditions.
