如何实现100–300吨/小时玄武岩破碎与制沙厂的高性价比？

在破碎和制砂生产线实现真正的性价比，并不意味着购买便宜的设备，而是要在每一个设计决策点上，使每项投资与相应的产出相匹配。生产线上的每一个设计选择，无论是破碎阶段的数量、皮带输送机的长度、设备的选择，还是堆料场的数量，都会直接转化为总投资。

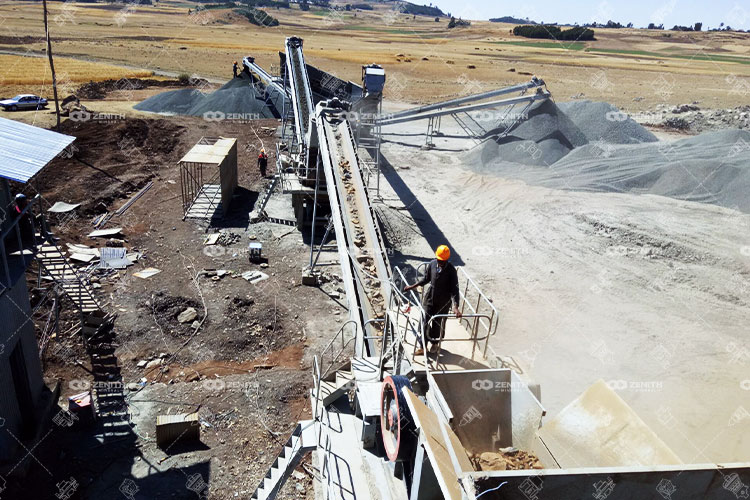

Ethiopia's industrial base is still developing. When clients procure a crushing production line, beyond the main machines they typically also need to source the complete supporting package, including steel structures, 皮带输送机s, cables, electrical cabinets, and spare parts. For this reason, what clients value is not the specifications of any single piece of equipment, but the overall design capability of the entire production line. The crushing and sand making production lines designed by ZENITH for the Ethiopian aggregate market are centered on "professional customization."

点击这里获取玄武岩破碎方案

一、高标准生产线要求

生产线处理的是玄武岩。该采场的玄武岩具有孔隙和风化特征，硬度和磨蚀性低于致密的新鲜玄武岩，与大部分地区的高磨蚀性玄武岩有很大不同。得益于这种独特的材料特性，采用反击式破碎机进行二次破碎，而非成本较高的圆锥破碎机，降低了前期投资，同时满足了骨料质量的要求。

主要项目规格如下：

· Raw material: 玄武岩

· Feed size: 0–720 mm (continuous gradation)

· 产品: 0–5 mm manufactured sand; 5–13-31 mm premium crushed stone (the 5–13 mm aggregate can be optionally diverted into the sand making stage)

· Capacity range: 100–300 TPH, stationary production line

· Quality standards: Manufactured sand (0–5mm) and crushed stone (5–13mm,13–31mm) fully comply with ASTM C33 aggregate specification adopted for construction projects in Ethiopia.

· Process route: 一级破碎+二级破碎+制砂+筛分，干法生产，生产线自动控制

Behind these specifications lies the client's multiple demanding requirements for production line design:

点击这里获取玄武岩破碎方案

投资必须最小化： The client has a limited budget. Beyond the main machines, every meter of 皮带输送机 and every steel structure counts toward the total cost.

2. Footprint must be compact: The client's site is limited. The production line design must minimize the footprint as much as possible.

3. 产品组合必须灵活： Local aggregate demand ratios fluctuate with the construction cycle. The production line must be able to adjust its product structure between sand and stone. The customized process solution developed by ZENITH for this production line addresses each of these demanding requirements one by one.

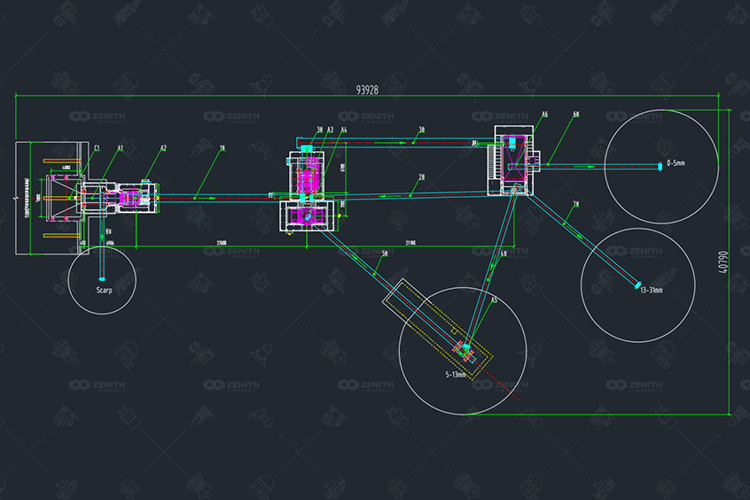

二、流程导向与模块配置

该生产线采用模块化设计，整体分为给料和初级破碎模块、二级/细碎和制沙模块、筛分模块、缓冲和成品存储模块以及电控模块，作为配套辅助设备一并交付，组成完整的集成系统。

点击这里获取玄武岩破碎方案

喂料及初级破碎模块

Equipped with one ZENITH F5X heavy-duty vibrating feeder and one PEW 颚式破碎机. The 0–720 mm raw material is dumped by dump truck into the raw material bin, then conveyed continuously and steadily to the 颚式破碎机 by the heavy-duty vibrating feeder. The feeder uses a single-bar structure. During feeding, most of the 0–80 mm fines and waste soil are screened out through the bar grizzly and do not enter the 颚式破碎机. This material does not need to be crushed in the first place. Screening it out in advance both protects the crushing chamber and improves the effective capacity of the entire line.

二级/细碎与制砂模块

配备一台ZENITH CI5X冲击式破碎机和一台VSI制砂机。经过初级破碎的材料通过皮带输送机输送到冲击破进行二次和细粉碎。大于31毫米的材料返回冲击破，形成闭路循环。对于该项目的原材料，冲击破的冲击破碎原理确保了破碎效率，同时获得具有优良粒型、低片状和长径比的成品，投资成本较低且破碎比更大。

3. 筛查模块

Equipped with a ZENITH S5X 振动筛. Material around 0–70 mm after crushing by the 冲击式破碎机 and sand maker is conveyed together to the 振动筛, which separates the 0–5 mm, 5–13 mm, and 13–31 mm finished 产品. Material larger than 31 mm returns to the 冲击式破碎机 for continued crushing, while 5–13 mm material forms a closed circuit with the 制砂机.

4. 成品及缓冲储存模块

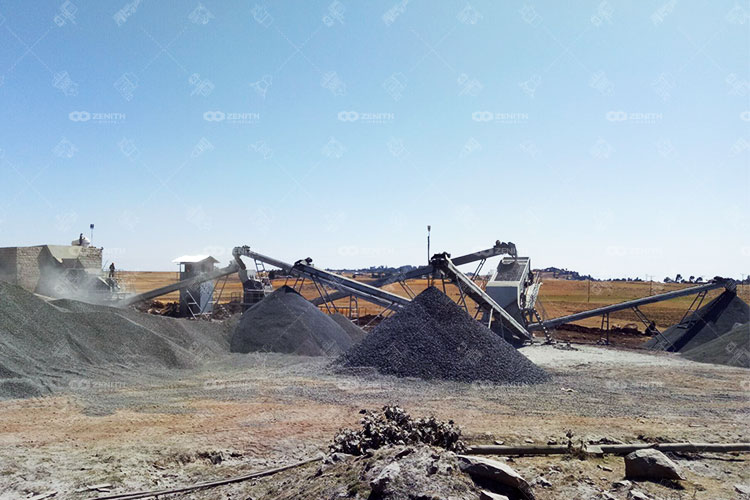

After screening, the finished 产品 form three stockpiles. Beneath the 5–13 mm finished product stockpile, a feeding gallery is arranged, equipped with SP vibrating feeder. This allows the material to enter the sand maker for circulating crushing, thereby increasing the manufactured sand ratio.

三、减少总线路投资的若干设计决策

双用途成品库存

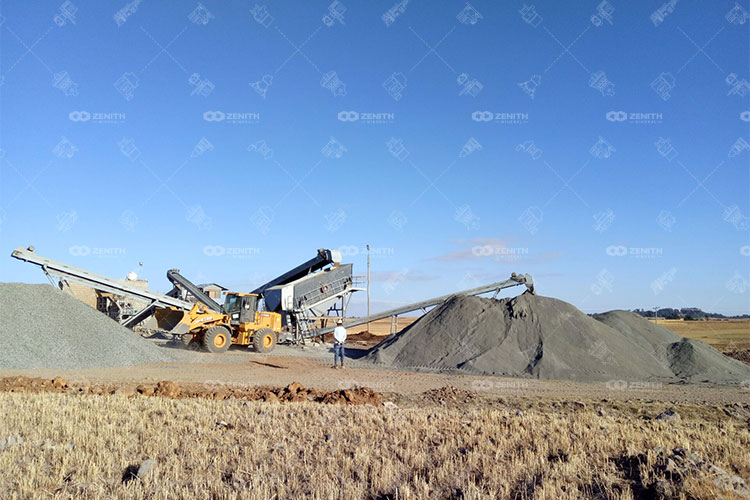

In conventional designs, the transfer stockpile and finished product stockpile are separate. Material is first transferred, then screened, then sent to finished product storage, increasing the number of stockpiles and the length of 皮带输送机s accordingly. In this production line, a feeding gallery is designed directly beneath the 5–13 mm finished product stockpile, allowing this stockpile to serve both as a transfer stockpile and a finished product stockpile. The material can either be sold directly as 5–13 mm finished product, or be conveyed via the SP vibrating feeder inside the gallery to the sand maker for circulating crushing and converted into manufactured sand. One stockpile serves two functions, significantly reducing the footprint and the number of 皮带输送机s.

2. 砂与骨料比例灵活可调

The demand ratio between sand and stone in the construction market is not constant. During road construction peak seasons, demand for crushed stone is high; during concentrated concrete project periods, demand for manufactured sand rises. This production line designs the 5–13 mm aggregate as an "optional" product. When the market demands more sand, 5–13 mm material enters the sand maker through the feeding gallery for closed-circuit circulation, and the manufactured sand proportion rises. When the market demands more stone, 5–13 mm is sold directly as finished product. The same production line can adjust its product mix according to market demand at any time. An operational flexibility that ordinary two-stage crushing lines do not have.

3. 模块化设计降低成本

二级/细碎和制砂模块采用模块化设计，既减少了现场土建工程，又降低了皮带输送机和电缆的成本。与此同时，皮带输送机的单机长度符合标准长度范围，确保交货周期短、投资成本低。设备之间布局合理，预留安装和维修空间，使得初期安装和后续维护互不干扰。

第四部分：从单一项目到可重复使用的生产线解决方案

这个生产线已经成为当地知名的破碎和制砂生产线。该工艺方案在业内赢得了广泛认可，当地客户纷纷前来咨询和学习，成功促成了多个新合同。

The reason this process solution has earned industry recognition and been successfully replicated is that its design logic is not tailored to any one client's specific operating conditions. Rather, it covers a category of common scenarios: projects in the 100–300 TPH capacity range, with combined aggregate and sand production needs, and constraints on both budget and site footprint.

对于同类型的项目，直接参考价值体现在三个方面：第一，在材料条件允许使用冲击破的情况下，“反击式破碎机+制砂机”的组合用于二级和细碎，明显优于“圆锥破+制砂机”的组合，投资优势更明显，同时成品粒形更佳。第二，双用途成品库存显示可以减少库存数量，从而在一定程度上降低土地成本。第三，灵活的砂石比例设计应纳入生产线的早期规划中，这将决定生产线是否能够随着未来市场需求的变化进行调整。

点击这里获取玄武岩破碎方案

结论

This Ethiopian 玄武岩 crushing and sand making production line controls cost through modular layout, maintains market flexibility through an adjustable sand-to-aggregate ratio design, and provides a demonstration sample — validated through multiple successful contracts for small-to-medium capacity clients with limited budgets.

ZENITH 提供专业的解决方案设计、设备供应、安装和调试，以及售后服务，作为此类项目的全生命周期服务的一部分。我们还能够提供涵盖钢结构、电控系统和备件的集成设计。如果您有类似的生产需求，欢迎随时联系我们获取定制化解决方案。
