HGT旋回式破碎机在年产10百万吨以上破碎项目中的优势

Primary crusher selection is critical to plant profitability. Although 颚式破碎机s offer flexible arrangement, they are limited in hourly capacity, unit energy consumption and feeding method for ultra-large crushing projects. As a result, the HGT gyratory crusher, which adopts a continuous crushing mechanism to deliver superior production stability, has become the ideal primary crushing solution for 10Mtpa+ large-scale projects.

The core strengths of ZENITH HGT Gyratory Crusher in high-capacity crushing projects are as follows:

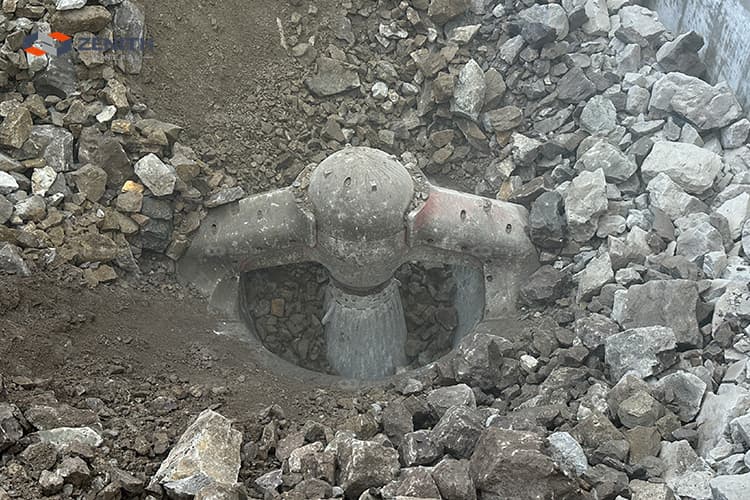

Massive Processing Capacity

A single ZENITH HGT gyratory crusher can achieve maximum hourly output up to 8895 tons, enabling extremely high material handling efficiency to match super-large production lines.

Continuous Operation for High Efficiency

Equipped with deep crushing cavity and large swing stroke, the ZENITH HGT gyratory crusher realizes high-frequency material compression crushing. Different from intermittent working 颚式破碎机s, HGT gyratory crusher runs stably and continuously without idle running loss, greatly improving overall operational efficiency.

Simplified Process Flow

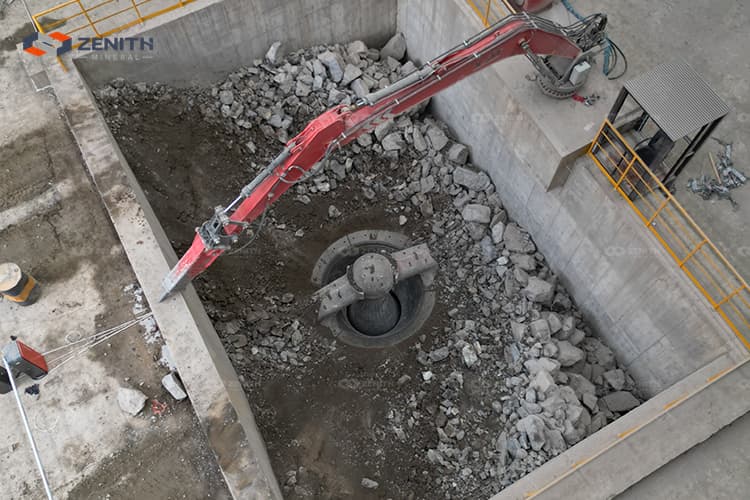

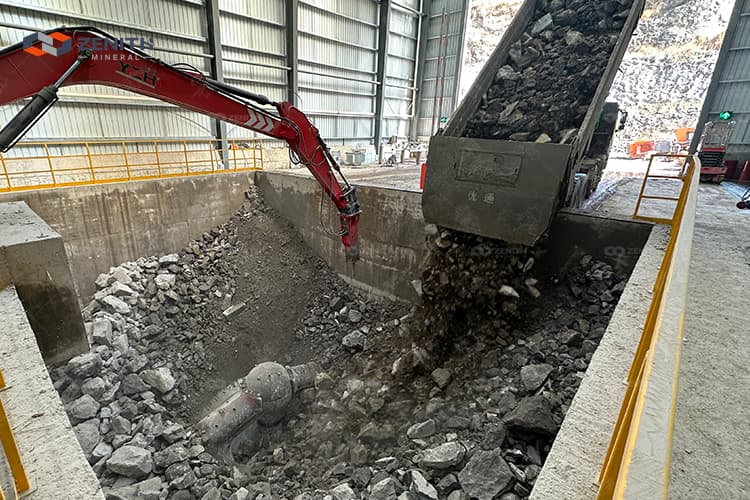

A single HGT Gyratory Crusher can support an annual production of 10 million tons crushing plant. Furthermore, it allows for direct feeding by dump trucks, eliminating the need for additional feeding equipment.

Better Product Shape

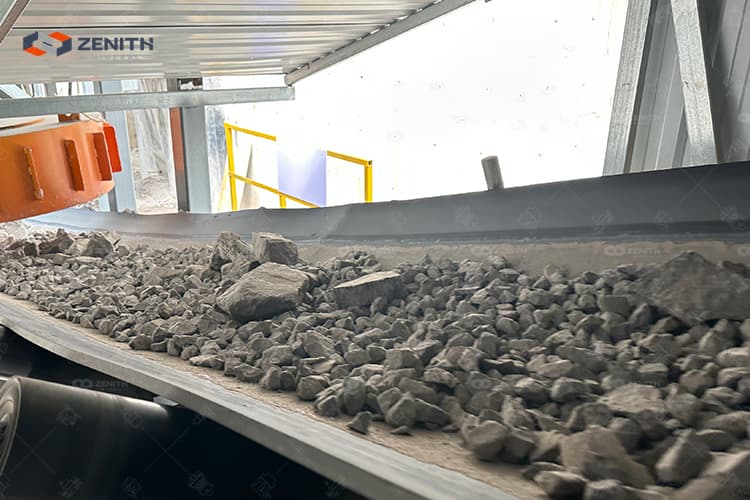

With its deep and steep cavity design, the ZENITH HGT gyratory crusher ensures raw material is crushed more evenly, resulting in a lower content of needle-like and flaky particles. This provides high-quality feed for subsequent grinding or secondary/fine crushing stages.

Convenient Maintenance & Reduced Downtime

Uniform liner wear extends service life and reduces the frequency of replacements. Combined with automated lubrication and hydraulic adjustment systems, the HGT gyratory crusher is designed for hassle-free operation and maximum uptime.

Outstanding Energy-saving Performance

The energy consumption per ton (kWh/t) of a single HGT gyratory crusher is far superior to a multi-unit 颚式破碎机 setup.

To make an objective engineering comparison, we take an 8,000tph crushing line as an example. To reach such capacity, the plant requires 6 sets of C6X200 颚式破碎机s working in parallel, with a total installed power of 2,400kW. In contrast, only one ZENITH HGT60110 gyratory crusher is needed to meet or even exceed the same throughput, consuming merely 1,250kW.

Apart from significantly lower power consumption, the single-gyratory layout eliminates complicated parallel conveying systems. It cuts extra costs brought by numerous 皮带输送机s, repetitive infrastructure construction, redundant equipment maintenance and labor input. Therefore, HGT gyratory crusher delivers remarkable advantages in energy efficiency, site investment and long-term operational cost control for large-scale mines.

In conclusion, for large-scale metal mines such as iron ore and copper ore, as well as ultra-large aggregate projects, the ZENITH HGT gyratory crusher stands out as the optimal primary crushing solution to minimize overall production costs and achieve efficient large-scale operation.
